sand blasting machine supplier in Qatar

Cleanblast is a reputable supplier of sandblasting machines in the UAE, offering a diverse range of options to cater to various surface preparation needs. Our conventional type blast machines include pressure blast machines with single chamber and double chamber options, providing versatility and efficiency in different blasting applications.

These machines are designed to handle various tasks with precision and effectiveness. They excel in cleaning mill scale, pitting, and corrosion on steel surfaces, making them ideal for industrial maintenance and restoration projects. Additionally, they are capable of removing laitence from concrete, performing underwater blast cleaning, and exposing re-bar in concrete for construction and renovation purposes.

Our single chamber blast machines are user-friendly, featuring a single control valve that can be operated by one person. On the other hand, the double chamber blast machine is built for larger projects and continuous operation, equipped with multiple control valves for enhanced productivity.

Quality is a top priority for us, and we ensure that all our machines are manufactured by reputable manufacturers with ISO certification and TUV certification. These certifications guarantee the reliability and performance of our blasting equipment, giving our customers peace of mind.

Choosing the right abrasive is crucial for achieving the desired results. We recommend several abrasives for our machines, including Coal Slag, Copper Slag, Garnet, Steel Shot, and Steel Grit. The type of abrasive used dictates the type of valve fitted on the machine. Depending on the abrasive, our machines can be equipped with Flat Sand Valve, Thomson valve, Dosing valve, or Steel Grit valve.

To enhance safety, especially in the petrochemical and shipyard industry, we recommend the use of Electro-pneumatic remote control valves. These valves ensure precise and safe operation, minimizing the risk of accidents during blasting activities.

For specific blasting media like garnet and steel grit, we recommend the use of Micro valve and steel grit valve, respectively. These specialized valves optimize productivity and durability, making them perfect choices for demanding blasting tasks.

In summary, Cleanblast is your reliable sand blasting machine supplier in the UAE, offering a wide range of top-quality blasting systems. Whether you are in the automotive, construction, or manufacturing industry, our machines are designed to deliver outstanding results. Choose Cleanblast for unmatched performance and superior surface preparation solutions.

Model: CLEANBLAST™ CBBM 18

• Volume Capacity: 18 Ltrs
• Design Pressure: 12 Bar
• Hydrostatic Test Pressure: 17.16 Bar
• Manual and Automatic Models available
• The CBBM 18 is the smallest model from our range with an approximate 26kgs of expendable abrasive loading capacity. It can blast continuously for 10 -15 minutes, making it well-suited for small jobs where mobility is the key factor. All the piping in the machine is ½” for effective air flow. The machine is fitted with a highly efficient moisture separator and flat sand valve. This model is available in both manual and automatic remote control versions

Model: CLEANBLAST™ CBBM 50

• Volume Capacity: 50 Ltrs
• Design Pressure: 12 Bar
• Hydrostatic Test Pressure: 17.16 Bar
• Manual and Automatic Models available
• The CBBM 50 is an ideal machine for medium-sized blasting work with an approximate 75kgs of expendable abrasive loading capacity. It can blast continuously for 20 – 25 minutes. The machine’s design makes it easy for transportation, making it a popular choice in marine, oil, and gas industries. All the piping in the machine is 1¼” for effective air flow, resulting in less pressure drop and increased productivity. The machine is fitted with a highly efficient moisture separator and abrasive valve. This model is available in manual and automatic remote control versions.

Model: CLEANBLAST™ CBBM 100

• Volume Capacity: 100 Ltrs
• Design Pressure: 12 Bar
• Hydrostatic Test Pressure: 17.16 Bar
• Manual and Automatic Models available
• The CBBM 100 is a popular choice for medium to heavy-duty industrial blasting applications. It has an approximate 150 kgs of expendable abrasive loading capacity and can blast continuously for 35 – 40 minutes. With more loading capacity, it is broadly used in construction, marine, oil, and gas industries. All the piping in the machine is 1¼” for effective air flow, resulting in less pressure drop and increased productivity. The machine is fitted with a highly efficient moisture separator and abrasive valve. This model is available in either manual or automatic remote control versions.

Model: CLEANBLAST™ CBBM 200

• Volume Capacity: 200 Ltrs
• Design Pressure: 12 Bar
• Hydrostatic Test Pressure: 17.16 Bar
• Manual and Automatic Models available
• CBBM 200 is the standard universal model virtually for any application involving pressure abrasive blasting. It has an approximate 200 kgs of expendable abrasive loading capacity and can blast continuously for 40 – 50 minutes. It is used in a wide range of blasting applications in construction, marine, oil, and gas industries. All the piping in the machine is 1¼” for effective air flow, resulting in less pressure drop and increased productivity. The machine is fitted with a highly efficient moisture separator and abrasive metering valve. Special Abrasives Valves like Steel Grit Valve, High Precision Micro valve, Thomson Valve, Sanders Valve can also be fitted with this standard model as per customer requirements. All the accessories that come along with the blast machines are CE Marked. This model is available in either manual or automatic remote control versions.

Model: CLEANBLAST™ CBBM 300

• Volume Capacity: 300 Ltrs
• Design Pressure: 12 Bar
• Hydrostatic Test Pressure: 17.16 Bar
• CBBM 300 is the double chamber blast pot from our standard range of Blast machines where two blasters can blast at a time and is on high demand in shipyards. It has an approximate 425 kgs of expendable abrasive loading capacity and can blast continuously without stopping for refilling the abrasive. All the piping in the machine is 1¼” for effective air flow, resulting in less pressure drop and increased productivity. This model is standard fitted with a highly efficient moisture separator and Thomson valve for perfect abrasive control. Remote control in the system can be either pneumatic or electrically controlled.

REMOTE CONTROL UNIT WITH SILENCER

The function of a remote control unit is to depressurize the pot to stop the blasting process. As soon as it receives the signal from the operator’s deadman handle unit at the blasting nozzle position, it will depressurize the pot and stop blasting. All remote control units are fitted with silencers as standard. Remote-controlled blast pots are highly recommended to avoid accidents and reduce wastage. Repair kits for remote control units and silencers are available for maintenance.

DEADMAN HANDLE

This safety unit is used along with the remote control unit using a twin hose of ¼” and is fitted on the blast nozzle position. The deadman handle will help the blaster to depressurize the pot and stop blasting without going near to it. We highly recommend using a remote-controlled unit-fitted blast machine for a complete safe working environment.

FLAT SAND VALVE

FLAT SAND VALVE – B600010

• Standard valve fitted on the machines.
• Can be utilized to provide accurate flow of abrasives.

MOISTURE SEPERATOR

• The moisture separator takes out contamination and moisture from the airline. The filter is executed with an automatic drain. Moisture separator is a standard part of all CLEANBLAST™ Blast machines, and for a fault-free and efficient blasting operation, we recommend using a Cleanblast After Cooler to ensure oil-free and clean air supply.

THOMPSON VALVE - B600890

• Known for its instant, smooth response to either pneumatic or electric deadman controls. It has an instant response in shutting the abrasive flow to the nozzle. The Thompson Valve is designed for superior operator safety and is ideal for multiple outlet use, easily adaptable to most existing blasting systems. It allows precise metering of all types of abrasive media.

GRIT VALVE - B600020

• Popular for very aggressive metallic abrasives.

The post Sand Blasting Machine Supplier in Qatar appeared first on Clean Blast International.

As a trusted blasting and painting equipment supplier in the Middle East, we’re bringing our latest solutions and technologies to the spotlight.

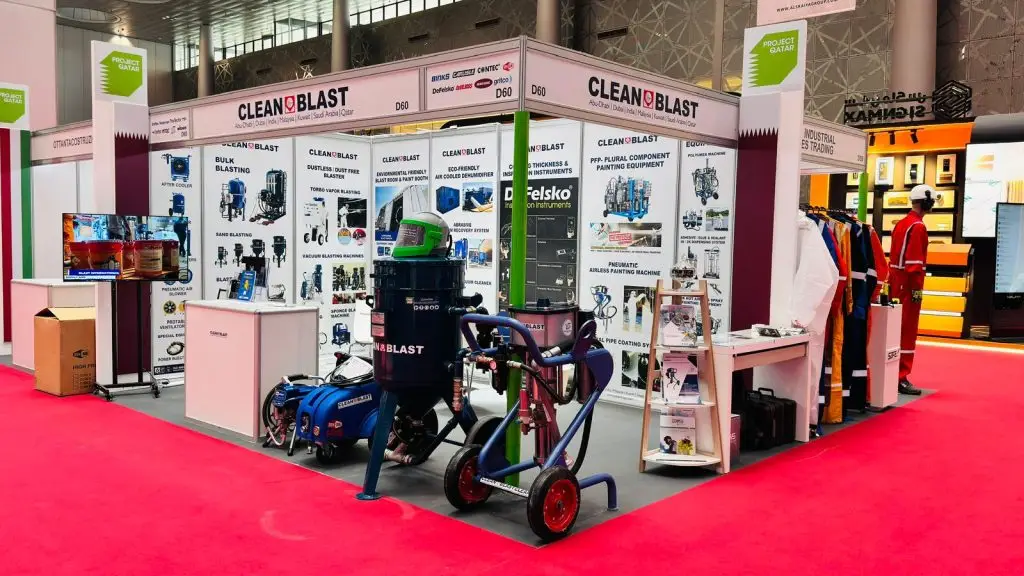

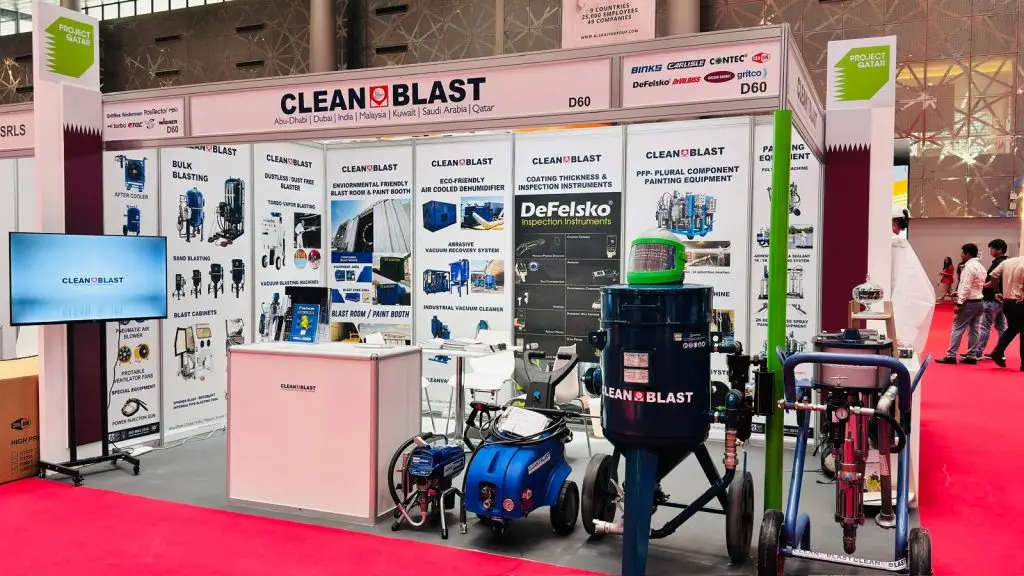

Join us from May 26 – 29, 2025 , at the Doha Exhibition and Convention Center—you’ll find us in Hall 2, Booth D60. Meet our team, explore our Blasting equipment, and Paint coating Equipment discover how we’re powering efficiency and precision across industries.

Let’s connect, collaborate, and create something extraordinary—together.

ProjectQatar2025 #BlastingAndPainting #SurfacePreparation #MiddleEastIndustry #ConstructionTech #InnovationInAction #MeetUsThere

The post We’re Exhibiting at Project Qatar 2025! appeared first on Clean Blast International.

What You Need to Know:

✅ Binks will now represent most of our products, including pumps, applicators, metering systems, and automated solutions.
✅ DeVilbiss will continue to specialize in the automotive refinish market.
✅ Ransburg will remain the brand for electrostatic atomization technology.

This rebrand simplifies our structure and strengthens our market presence. Please share this update with customers, assuring them they will continue to receive the same reliable products and services.

The post Carlisle Fluid Technologies is Now Binks! appeared first on Clean Blast International.

🔹 What’s Changing?

• Customers will now receive manuals in Arabic, Chinese, Korean, and English instead of the previous English, French, German, and Spanish version.
• Instruments with Arabic manuals will now have model codes ending in ‘-Z’ on the invoice.

We are continuously working on additional manual updates and will keep you informed as they become available.

The post PosiTector 6000 & 200 Now Shipping with Arabic Manuals! appeared first on Clean Blast International.

DV1 View our clearcoat & basecoat HVLP automotive spray guns here!

clearcoat & basecoat HVLP automotive spray guns

DV1 Clearcoat HVLP Spray Gun

The DV1s Smart and Spot Repair Spray Gun

PROLite Basecoat/Clearcoat Professional Spray Gun

PROLite Gravity

PROLite Pressure/Suction


Features



PROLite Spray Guns

Automotive spray guns are a must for those who want a professional-looking finish on their vehicles. They’re the best way to ensure even and precise spraying for a smooth, consistent finish that will turn heads — for all the right reasons.

DeVilbiss PROLite spray guns are specifically formulated for automotive refinish coatings that can be difficult to atomize, such as low VOC, high solids, pearls, or metallic materials. Both models share ergonomic design features and advanced air cap technology but cater to different application needs and preferences.

PROLite Gravity Spray Guns

PROLite Gravity is a gravity spray gun that feeds paint from a cup mounted on top of the gun by gravity for enhanced paint application and efficiency. This produces a more even and consistent spray pattern with less splattering and dripping. A gravity spray gun is lighter and easier to maneuver, so the operator is less likely to grow fatigued — important when there’s a lot of area to cover! Because the paint reservoir is located above the nozzle, the gravity feed system helps prevent paint from clogging the gun. This makes PROLite Gravity an ideal choice for high-viscosity paints, and applications that demand precision painting and detail.

PROLite Pressure Pot Guns

PROLite Pressure/Suction is designed for versatility with both pressure and suction feed, offering advanced application capabilities for a wider range of coatings. The pressure pot spray gun uses compressed air to force paint out of a pressurized tank, or pressure pot, and through the spray gun nozzle. The pressure pot connects to the spray gun with a hose. Compressed air can also be used to siphon paint from a reservoir below the spray gun body. A pressure pot spray gun delivers paint at a higher flow rate, which helps speed up the painting process, making it ideal for larger projects. The suction feed option is a good middle ground; it’s lighter and easier to handle than a pressure pot spray gun and offers a larger paint cup capacity than a gravity spray gun.



PROLite S Professional Spot Repair Gun

The PROLite-S is famous for exceptional handling, delicate trigger control and the ability to blend solid colors — particularly metallics and special effect colors — over a small area. Combining the fit, feel and balance of the renowned PROLite with the compact dimensions essential in a spot repair gun, minor repairs can be completed to full warranty standards quickly and efficiently with minimal paint, all while maintaining pinpoint color accuracy.

Learn more



Specifically designed and precision engineered to ensure perfect atomization of all the latest waterborne and solventborne coatings, the PROLite-S is available with a range of high efficiency and HVLP setups. Each is developed specifically to provide versatility for the most popular automotive refinish materials.

The lightweight forged aluminum gun body of the PROLite-S is designed to provide the fit, feel and balance essential to achieve a perfect SMART or Micro repair. The compact front end provides optimum visibility of the fan pattern even when working in restricted spaces. The heavy duty anodized finish of the PROLite-S is designed to provide the durability needed in today’s high throughput body shops.

Back


Features

Specification

Features:

• Lightweight and precision-engineered trigger action ensuring excellent control for superb feathering
• Comprehensive range of air cap, fluid nozzle and needle combinations for atomization of all types of waterborne and solventborne materials
• Renowned DeVilbiss fit, feel and balance is ensured by the ergonomically designed anodized, forged aluminum gun body
• Combines the performance and durability of a full-size gun with lightweight pinpoint delivery for spot repairs

Air Cap	Needle/Nozzle	Cup Type
HV5, MC1	0.6	125ml, ACETAL-WHITE
HV5, TE5	1.0	ACETAL

PROLite S Gravity
Weight (gun only)	395g
Gun Body	Anodized Aluminum
Air Cap	Plated Brass
Air Cap Retaining Ring & Knobs	Clear Anodized Aluminum
Fluid Nozzle	Stainless Steel
Fluid Needle	Stainless Steel
Air Inlet Thread	1/4" Universal



Air Cap Offerings

			Recommended Inlet Pressure		Max Air Consumption		Fan Pattern Size		Nozzle Sizes
Air Cap	Atomization Type	Applications	PSI	BAR	SCFM	SLDM	in	mm
TE5	High Efficiency	Repair	29	2.0	3.5	100	4.0-7.0	100-180	0.8-1.4mm
HV5	HVLP	Repair	29	2.0	4.8	135	2.5-6.5	60-160	0.6-1.4mm
MC1	High Efficiency	Repair	15	1.0	1.8	50	.25-1.0	025-25	0.6mm
RS1	High Efficiency	Repair	29	2.0	1.9	55	1.0-2.0	25-50	0.8-1.4mm

GPG Gravity Spray Gun

DeVilbiss has been at the forefront of developing spray guns specific to applications around the body shop, including meeting the market’s demand for a cost-effective, multi-purpose spray gun and automotive paint gun. The DeVilbiss GPG addresses this requirement by providing solid performance that is durable and an exceptional value.

Learn more



The anodized, drop-forged aluminum gun body of the GPG provides renowned ergonomics together with lightweight aluminum controls and smooth trigger action. It’s this legendary combination of fit, feel and performance that makes the DeVilbiss brand the professional automotive refinisher’s preferred choice.

The high-efficiency and HVLP air caps have been developed to provide excellent atomization of a wide range of automotive refinish paints and coatings. The large array of fluid nozzles offers a wide range of flow rates allowing for rapid application rates for a multitude of coatings including clearcoats, basecoats, sealers, primers, enamels, synthetics and other common commercial paints.

Back


Features

Specification

Features:

• Lightweight design delivers a uniform spray pattern and atomization spray distribution for an exceptional quality finish that professional painters demand
• Range of advanced air cap technologies for excellent application performance with the latest waterborne and solventborne coatings
• Ergonomic handle design with reduced trigger travel to decrease operator fatigue
• Environmental legislation-compliant atomization with high transfer efficiency resulting in significant paint savings
• Drop-forged aluminum, anodized gun body with removable air baffle for a longer working life.

	Air Cap	Needle/Nozzle	Gauge	Cup Type
	GPG2	1.3, 1.5, 1.8	HAV-501	900ml, ALUMINUM
	GPG2	1.3, 1.5, 1.8	HAV-501	560ML, ACETAL-WHITE
	GPG2	1.8, 2.2	-	900ml, ALUMINUM
	7E7	1.2, 1.3, 1.4	-	900ml, ALUMINUM
	GPG2	1.3, 1.4, 1.5	HAV-501	900ml, ALUMINUM
	7E7	1.3, 1.4	HAV-555	-
	7E7	1.3, 1.4	HAV-555	900ml, ALUMINUM
	7E7	1.2, 1.3	HAV-555	-
	7E7	1.2, 1.3	HAV-555	900ml,ALUMINUM
	PR10, PR30	1.4, 1.6	-	900ml, ALUMINUM
	PR10, PR30	1.8, 2.0	-	900ml, ALUMINUM
	PR10, PR30	2.5	-	900ml, ALUMINUM
	PR10, PR30	UV1, UV2	-	560ML, ACETAL - BLACK

Air Cap Offerings

			Recommended Inlet Pressure		Max Air Consumption		Fan Pattern Size		Nozzle Sizes
Air Cap	Atomization Type	Applications	PSI	BAR	SCFM	SLDM	in	mm
7E7	High Efficiency	Basecoats, Clearcoats	16-22	1.1-1.5	10.8	305	9.5-10.5	240-265	1.2-1.4mm
GPG2	HVLP	Basecoats, Clearcoats	22-26	1.5-1.8	15.9	450	11.5-12.0	290-310	1.2-2.2mm
C86	Conventional	Basecoats, Clearcoats	29-44	2.0-3.0	10.6	300	10.5-11.5	270-290	1.4-1.8mm
C30	Conventional	Basecoats, Clearcoats	29-58	2.0-4.0	10.8	305	9.5-10.5	240-270	1.4-1.8mm
PR10	High Efficiency	Primers	26-29	1.8-2.0	12	340	10.5-12.0	265-305	1.4-2.5mm
PR30	HVLP	Primers	17-21	1.2-1.4	16	450	11.0-13.0	280-330	1.4-2.5mm

FLG Spray Gun

FLG Gravity

FLG Pressure Suction


Features



The DeVilbiss FLG Spray Gun is an affordable, general-purpose solution ideal for a variety of refinish jobs and DIY projects. With options for gravity, suction, and pressure feed setups, it provides flexibility for both small and large applications. The FLG offers full control over pattern shape, fluid flow, and air pressure for consistent, efficient results. Its ergonomic design, smooth trigger action, and efficient atomization technology help reduce fatigue and material waste.

SLG Finish Coat and Primer Spray Gun


Features

Specification

HVLP Spray Guns

Spray guns are an efficient way to apply paint to surfaces, but using the correct type for your application is crucial to getting the results you want. Traditional spray guns are a little too aggressive for certain surfaces, such as automobiles. You’ll end up wasting a lot of your paint on overspray, and won’t achieve the fine finish your ride deserves.

HVLP spray guns are the perfect solution. They offer precision control and efficiency, providing a fine and even spray pattern with less overspray.

What are HVLP Spray Guns?

HVLP stands for High Volume, Low Pressure. HVLP spray guns use a high volume of air at low pressure to atomize paint or other coatings and deliver a smooth and controlled finish with less overspray. HVLP guns are popular in the automotive industry, and widely used in woodworking, furniture, and other DIY projects.

The HVLP paint gun works by drawing air from an air compressor through a turbine or fan. The air is then forced through a nozzle, which creates a vacuum that draws paint from a reservoir into the air stream. The air and paint are then mixed and atomized, creating a fine mist that is sprayed onto the surface.

Benefits of HVLP Guns

HVLP spray guns offer several advantages over traditional spray guns, including:

• Reduced Overspray. HVLP guns produce a fine mist of paint, resulting in minimal overspray and less wasted paint. The paint you do use ends up on your car instead of the driveway or surrounding bushes!
• Enhanced Finish. Because the paint is atomized more evenly, HVLP guns provide a fine, smooth, and even finish that is ideal for achieving professional-grade results.
• Improved Transfer Efficiency. HVLP spray guns boast 80% – 90% transfer efficiency, offering better paint coverage with minimal waste. Airless sprayers average only 50% paint transfer efficiency, making HVLP guns more cost-effective.
• Reduced Health Risks. HVLP spray guns produce less mist and fumes, reducing the risk of inhaling harmful solvents. The lower pressure mitigates the risk of skin injuries that may occur with traditional airless sprayers.
• Environmental Friendliness. The reduced overspray and improved transfer efficiency contribute to a more eco-friendly painting process.

HVLP Spray Gun Applications

HVLP spray guns are versatile tools suitable for a wide range of applications, including:

• Painting and refinishing cars, boats, and other vehicles, including basecoats, clearcoats, and touch-ups
• Painting furniture and other home decor
• Applyings stains and finishes to wood
• Applying primers and sealers

Choosing the Right HVLP Paint Gun

When selecting an HVLP automotive spray gun, consider the following factors:

• Nozzle Size. The nozzle size determines the size of the spray pattern. Different nozzle sizes are suitable for different types of coatings; smaller nozzles produce a finer finish, while larger nozzles create a wider spray pattern. Choose a nozzle size that matches your intended application.
• Air Pressure. The recommended air pressure for HVLP spray guns is typically between 10 and 30 psi. Using too much air pressure will result in overspray, while using too little air pressure can lead to a poor finish. Ensure your air compressor can provide the necessary air pressure for the spray gun to operate optimally.
• Material Compatibility. Make sure the HVLP gun is compatible with the type of paint or coating you plan to use.
• Ergonomics and Adjustability. To achieve precise control, look for an HVLP automotive spray gun with adjustable settings for spray pattern, fluid flow, and air pressure.

Maintenance and Care of HVLP Spray Guns

Proper use and maintenance will ensure longevity, consistent performance, and superior results. Hold the spray gun the correct distance from the surface, typically 6” – 8”, and move the gun smoothly back and forth to avoid drips and runs. Wear a respirator, gloves, and safety glasses at all times when using an HVLP spray gun.

Regularly clean the gun after each use, following the manufacturer's instructions. Use appropriate cleaning solutions and ensure all parts are thoroughly dried before storage.

Conclusion:

HVLP spray guns are powerful tools that offer superior finish quality and efficiency. By understanding their benefits, applications, and how to choose the right one, you can achieve professional results in your painting projects. Explore our range of HVLP spray guns and take your painting endeavors to the next level.

Finish Coat and Primer Spray Gun Kit Specifications:

• 30 PSI inlet pressure delivers 10 PSI air cap pressure at 13 CFM air volume
• Air inlet: 1/4" NPS

Detail Spray Paint Gun Specifications:

• 30 PSI inlet pressure delivers 10 PSI air cap pressure at 8 CFM air volume
• Air inlet: 1/4" NPS

Kit	Guns Included	Fluid Tip	Cup(s) Included	Accessories Included
Painting & Touch Up	Finish Coat Detail	1.3, 1.0, 1.8	One 600 cc (20 oz.) One 250 cc (8.5 oz.)	Cleaning brush, wrench, air adjusting valve with gauge
2-Gun Painting & Priming	Finish Coat Primer	1.3, 1.8, 1.5	Two 600 cc (20 oz.)	Cleaning brush, wrench, air adjusting valve with gauge
3-Gun Painting	Finish Coat Primer Detail	1.3, 1.8, 1.0	Two 600 cc (20 oz.) One 130 cc (4 oz.)	Cleaning brush, wrench, air adjusting valve with gauge



The post Automotive Professional Spray Guns and Accessories appeared first on Clean Blast International.

DV1 Basecoat Spray Gun

DV1 Clearcoat HVLP Spray Gun

The DV1s Smart and Spot Repair Spray Gun

DV1 Limited Edition Old School & New School Guns

DV1 Limited Edition Durbz Guns

Achieve a Professional Finish with Ease

Upgrading your vehicle’s appearance with a fresh coat of paint requires precision and the right tools. An automotive spray gun is essential for achieving smooth, consistent finishes that enhance your car’s look. Here’s what you need to know about this must-have tool for vehicle refinishing. DV1 Automotive Spray Guns

What Is an Automotive Spray Guns?

An automotive spray gun is a specialized tool designed to apply paint and coatings evenly across a vehicle’s surface. Invented in 1888 by Dr. Allen DeVilbiss, this innovative device uses atomization to transform paint into a fine mist, ensuring flawless application.

Types of Automotive Spray Guns

• HVLP (High Volume, Low Pressure): Ideal for precise applications with minimal overspray, perfect for detailed work and smaller projects.
• LVLP (Low Volume, Low Pressure): Delivers faster coverage with less air, making it suitable for larger vehicles and high-volume production.

Key Components

1. Nozzle: Shapes the spray pattern and controls paint flow.
2. Air Cap: Regulates airflow for consistent atomization.
3. Paint Cup: Holds paint or coatings, available in gravity or pressure-fed designs.
4. Trigger: Adjusts paint release for smooth application.
5. Air Compressor Connection: Supplies the air needed for atomization.

How to Use an Automotive Spray Guns

1. Prepare the Paint: Mix with a thinner to achieve the right consistency.
2. Connect to an Air Compressor: Ensure proper pressure for atomization.
3. Adjust Settings: Fine-tune the nozzle, air cap, and spray pattern to suit your project.
4. Apply Paint Evenly: Maintain a steady distance and movement for uniform coverage.
5. Apply Multiple Coats: Allow drying time between layers for optimal results.

Benefits of Automotive Spray Guns

• Precision: Achieves a professional, smooth finish.
• Efficiency: Reduces material waste with high transfer efficiency.
• Versatility: Handles a variety of paints, including metallics and high solids.
• Cost-Effective: Minimizes labor and material costs over time.

DV1 Automotive Spray Guns For automotive enthusiasts and professionals alike, investing in a high-quality spray gun ensures exceptional results every time. Transform your vehicle with a paint job that truly stands out!

The post DV1 Automotive Spray Guns appeared first on Clean Blast International.

Spray Guns for Automotive DeVilbiss Automotive Refinishing leads the way in advanced automotive spray paint technology, offering solutions designed to meet the evolving demands of professional refinishers. Our innovative spray guns deliver precision, exceptional atomization, and unmatched performance across a variety of applications.

Superior Spray Paint Guns for Professional Results

DeVilbiss sets the standard in automotive spray paint technology, delivering precision and efficiency for flawless finishes. Designed for high-solids clear coats and metallic basecoats, our spray guns ensure exceptional atomization, reducing material waste and VOC emissions. With ergonomic designs and advanced transfer efficiency, DeVilbiss helps professionals save time, reduce costs, and achieve stunning results.

Upgrade your refinishing process today with DeVilbiss — trusted for innovation, quality, and performance.

Spray Gun for Automotive

DV1 View our clearcoat & basecoat HVLP automotive spray guns here!

PROLite Basecoat/Clearcoat Professional Spray Gun

PROLite S Professional Spot Repair Gun

GPG DeVilbiss has been at the forefront of automotive paint guns specific to applications around the body shop, including meeting the market’s demand for a cost-effective, multi-purpose paint spray gun. Learn more about the GPG gravity spray gun here.

FLG General Purpose Spray Gun

SLG Finish Coat and Primer Spray Gun

Gun Cleaning Kit contents

RU-CURE UV-LED

PRO VISOR

Hose Premium Hoses from Devilbliss help ensure premium paint jobs. Tube is nylon; cover is black neoprene rubber; yarn reinforced.

Why Choose DeVilbiss Automotive Refinishing?

• Exceptional Atomization: Designed to handle the latest coatings, including waterborne and high-solids materials, our spray guns provide uniform distribution and excellent coverage.
• Efficiency and Cost Savings: High transfer efficiency minimizes paint waste, saving costs while ensuring environmentally friendly operations.
• Precision Craftsmanship: From ergonomic design to precise pattern control, every detail is tailored to professional refinishing needs.
• Sustainability Commitment: Reduced overspray and VOC emissions contribute to eco-friendly practices without compromising quality.

Innovation That Drives Excellence

Backed by years of research and development, DeVilbiss continues to set the industry standard with cutting-edge technology and customer-focused solutions. Our products empower painters to work efficiently, achieve better throughput, and deliver the “Wow” factor your customers expect.

Upgrade your refinishing process with DeVilbiss spray guns — the trusted choice for professional-grade performance, unmatched quality, and proven results.

The post Spray Guns for Automotive appeared first on Clean Blast International.

Discover advanced solutions tailored for your industrial applications. Don’t miss it!

The post Join Us at CORCON 2024! appeared first on Clean Blast International.

Applications & Specifications

Capacity: 2 M³/hr
Overall Dimensions: 2.1 m ( L ) x 1.4 m ( W ) x 2.1 m (H)
Power Requirement: 3.7 KW, 3Ph, 4 wire (3Phase + Neutral), 50 c/s, 400 V, A.C.
Compressed Air: 4 cfm at 6 bar

(Screen Mesh is normally supplied in 16 B. S. suitable for maximum particle size of 0.8 mm. For other sizes, suitable screens can be provided as per the specific requirement)

 Abrasive Recycle with Bucket Elevator

Model: STD
Processing Capacity  :  Appro 3 M³/hr
Total Power Requirement : 4 kW
Storage Silo :  1000

Important Parts of a the Garnet Recycling Machine

In-feed hoper
Bucket Elevator
A three-deck vibratory
Dust Collector with reserve pulse jet cleaning
A storage hopper
A control Panel

A Portable Abrasive recyling system is provided to reclaim the useful abrasive from the spent abrasive. The spent abrasive is mixture of broken abrasive, dust, useful abrasive and other contaminants. The proportion of useful abrasive reclaimed depends on the initial size and type of abrasive used. In case of steel abrasive the brake-down rate is nominal, whereas expandable abrasive such as Garnet has very high rate of brake-down.

In Abrasive recyling system, the spent abrasive with all the contaminants is manually swept from floor and loaded to the infeed hopper of the recycling unit.

The bucket elevator discharge the spend abrasive to a two deck vibratory wire screen mesh separator unit. Initially, the spend abrasive falling to the top deck gets screened through the coarser wire mesh separating the large size particles allowing the good abrasive and smaller sized particles to fall on the second (middle) deck . All the waste from the top deck is discharge through the refuse pipe.

An inbuilt bucket elevator elevates the spend abrasive and drops to a double deck vibratory screen separator.

Salient Features

The used abrasive on the floor will be manually swept and loaded in the hopper provided to feed the same to the Grit Recovery System. This abrasive is then transferred to the double deck vibrating screen.
 A horizontal slide gate has been provided at the bottom of the feed hopper for controlling the feed rate to the vibratory screen.
 The abrasive gets screened through the coarser wire mesh separating the large size particles mixed with the abrasive allowing the abrasive and smaller sized particles to fall on the second wire mesh.
 The second wire mesh retains the required size of abrasives that is discharged from the middle discharge chute and is stored in a bag or storage silo. The anti blending attachment prevents the wire mesh from getting choked by the smaller or exact size of particles that of wire mesh. The finer size of abrasive passes through the second screen and then discharged through the refuse pipe to the ground. During the vibratory action the flying dust is sucked through the suction hose which is connected to the dust collector.
 The air suction pipe from the vibratory deck is connected to the dust collector. The dust collector filters are cleaned by reverse pulse jet system during working of the dust collector.
 A common Control Panel provides for sequential starting of the system and incorporates the necessary MCBs, indicating lamps, etc.
 The unit can be transported anywhere and need 3 Phase and neutral electric connection and compressed air supply for operating.

The dust separated during recycling operation is conveyed to the dust collector through interconnecting ducts between the vibratory deck and dust extraction unit. The dust is trapped in cartridge filter and reasonably clean air is discharged to atmosphere through the blower outlet. All the fines are transferred to the refuse from the bottom discharge chute of the vibratory deck.

Vivro Screening Operational Process

Loading:

Used abrasive is manually swept and loaded into the feed hopper.

Screening:

The abrasive is screened through a coarse wire mesh, separating larger particles while allowing smaller ones to pass through to a second mesh. The required size of abrasive is retained by the second mesh and discharged into a bag or storage silo. Fine parti- cles pass through and are discarded through a refuse pipe, while dust is extracted by a suction hose connected to the dust collector.

Dust Extraction:

Dust is removed via a suction hose connected to the dust collector, which uses a reverse pulse jet system to clean the filters.

Storage:

Cleaned abrasive is discharged through the middle chute into a bag, while fine particles are discarded through the refuse pipe.

Air Filtration:

Dust is trapped in a cartridge filter, and clean air is discharged through the blower outlet.

Air Wash Operational Process:

Dust-Laden Air Entry and Initial Separation:

The process begins as dust-laden air enters through the inlet plenum of the dust collector, where heavy particles immediately settle into the hopper.

Filtration and Continuous Cleaning:

The air flows through the filter cartridges, trapping dust on the outside of the filtering media, allowing clean air to exit. The filter cartridges are automatically and continuously cleaned by high-pressure air jets, ensuring unin- terrupted operation. Dust dislodged from the filters settles into the hopper.

Abrasive Processing:

Used abrasive is placed into the abrasive hopper, then flows at a regulated rate to the elevator and into a rotary sieve. This sieve, equipped with holes of varying diameters, separates large contaminants from the abrasive.

Air Wash Cascade System:

After sieving, the abrasive passes through a cascade system where the air wash action occurs. The air wash can be adjusted to control the size of reusable abrasive particles, while dust and non-usable fine abrasive are auto- matically discharged and collected.

Cleaned Abrasive Collection:

The cleaned abrasive falls into the abrasive silo, ready for storage in large bags or blast vessels.

System Features:

The system includes additional features such as crane hooks, inspection covers, and flexible dust-exhaust ducting to ensure efficient and safe operation.

abrasive recyling system

The post ABRASIVE RECYLING SYSTEM appeared first on Clean Blast International.

Magnetic probes attach to steel structures for monitoring climatic conditions.

• Measures and records climatic conditions including: relative humidity, air temperature, surface temperature, dew point temperature, difference between surface and dew point temperatures, and wet bulb temperature.
• Fast response, precision sensors provide accurate, repeatable readings
• Environmentally sealed enclosure – weatherproof, dustproof, and shockproof—meets or exceeds IP65
• Internal memory storage of 10,000 datasets (60,000 readings)

Conforms to ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7 and US Navy NSI 009-32

The post PosiTector® DPM LSeries appeared first on Clean Blast International.
