Vacuum Recovery Machine

Efficiency meets innovation with the Vacuum Recovery Machine from CLEANBLAST. Conventional methods of abrasive recovery can be time consuming and labor intensive. That’s where our cutting edge vacuum recovery system steps in, revolutionizing blasting operations for the better.

Efficiency Redefined

Traditional approaches to collecting spent abrasives can eat up valuable time and resources. The Vacuum Recovery system, however, offers a faster and more efficient solution. Designed with ease of use in mind, this system operates around the clock, recovering various materials such as blast media, powders, aggregates, and more.

Versatility in Action

From shipyards to fabrication companies, metallurgical plants to powerhouses, the Vacuum Recovery Machine finds its place. It thrives in hard-to-reach spots, making light work of otherwise challenging cleanup tasks. Shipyards benefit from its prowess in cleaning confined vessel areas, while fabrication companies see a boost in productivity during clean-up operations.

Unveiling a Greener Future

Not only does the Vacuum Recovery system save time and manpower, but it’s also an eco-friendly choice. By reclaiming valuable materials and reducing waste generation, it aligns perfectly with sustainability goals. In metallurgical plants, steel mills, and beyond, its role in maintaining clean production areas and equipment is invaluable.

Automated Excellence

An optional rotary valve for continuous dumping takes efficiency up another notch. Whether manual or automatic operation, the Vacuum Recovery Machine ensures quick and thorough material recovery, minimizing downtime and enhancing overall efficiency.

Elevate Your Blasting Operations

In summary, CLEANBLAST’s Vacuum Recovery system is a game-changer in surface preparation and cleanup. Embrace this advanced solution and embrace a more streamlined, eco-friendly future. Transition into a world where efficiency, sustainability, and innovation converge. With the Vacuum Recovery Machine at your side, experience a heightened level of operational excellence that transforms your approach to abrasive recovery and surface cleanup.

Features
Specification
Manuals

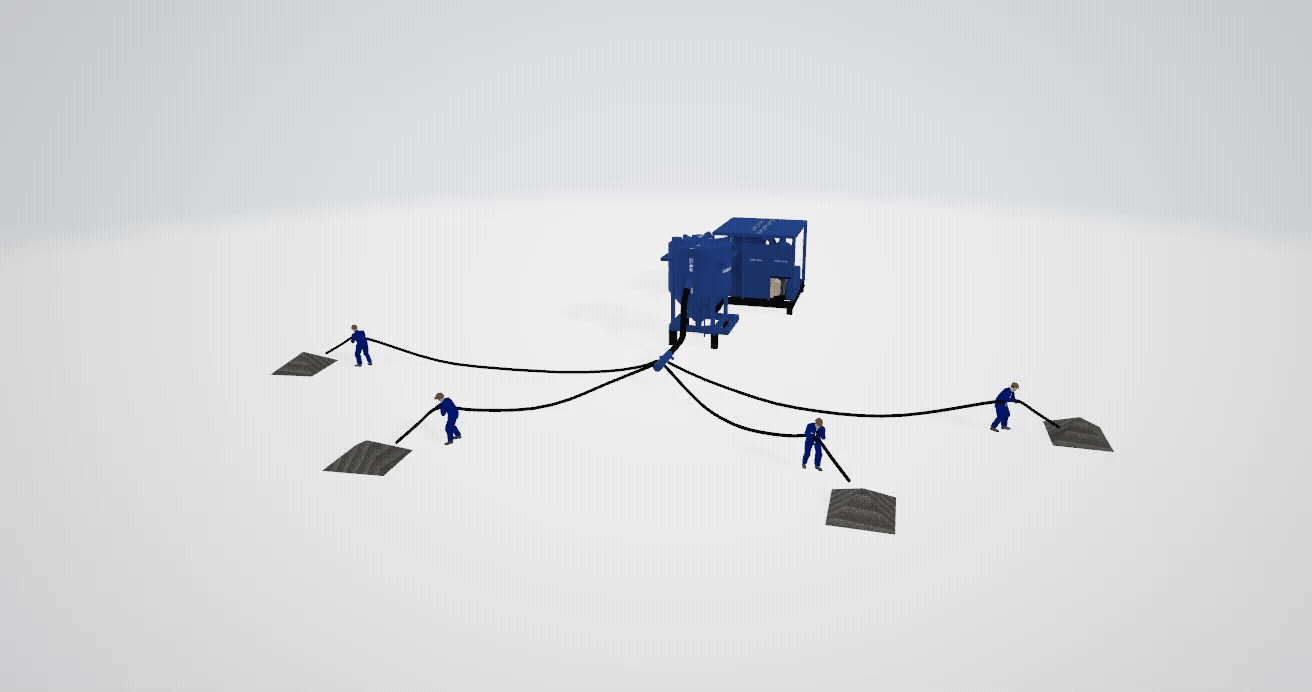

CLEANBLAST vacuum recovery system provides 24-hours operation to recovering and conveying of blast medias, powders, plastic pellets, grains, sands, aggregates and other bulk materials in both clean-up and material transfer functions. Especially in inaccessible or enclosed areas such as storage tanks, box girder constructions, tank internals at shipyards etc, the equipment offers great savings in time and manpower. A CLEAN BLAST Vacuum system cut costs by reducing cleanup time and reclaiming valuable materials. These versatile vaccum systems can be used to pick up any materials that will flow through a hose with its long reach and powerful suction.

It allows silo to be emptied within a few minutes either manually or automatically. The silo can be fitted with a rotary-valve (optional) for continuous dumping operation.

Industrial Applications in
Shipyards
Fabrication companies
Tank cleaning companies
Metallurgical plants
Steel mills
Foundries
Power plants
Cement & chemical industries

Standard Safety Features of CLEANBLAST VACUUM MACHINE

  • System automatically shut-off to prevent damage to vacuum producer when suction hose is choked-up with abrasive and electric motor’s current rises above a certain predetermined value.
  • Silo and cyclone are equipped with full-tank sensor to shut-off the vacuum machine when it is full and prevent overloading of abrasive to dust-collector. At the same time, it can also be engineered to activate the warning light and alarm (optional).
  • An emergency ‘STOP’ button, when depressed, will automatically cut-off all electrical supply.

Heavy Duty Range Specification

Model No:

CBVR-E8-90

CBVR-E10-110/132

Recovery Rate

3.5 to 8.0 Ton/Hr

5.0 to 12 Ton/Hr

Max. Conveying Distance

20m in Vertical ;
10m in Horizontal

30m in Vertical ;
20m in Horizontal

Supply / Power / Class

415V 3phase 50Hz/ 90KW
Class F insulation & IP54 Protection

415V 3phase 50Hz/110 KW or 132KW Class F insulation & IP54 Protection

Air Flow

1470 cfm@ -450mm Hg

2400 cfm@ -450mm Hg

Filter Cleaning

Periodic Reverse Jet Air Pulsing c/w Timer Card

Periodic Reverse Jet Air Pulsing c/w Timer Card

Dust Collector Filter

High Efficiency Filter Cartridge

High Efficiency Filter Cartridge

Dimension (LxWxH)

2800 x 2800 x 2250mm

3000 x 2300 x 2560mm

Silo Tank/Gross Weight (included)

8 Ton Silo Tank / 3.5 Ton

8 Ton Silo Tank / 4.5 Ton

Standard Accessories

5ʺ x 10m Vacuum Hose,
5ʺ x 10m, 4ʺ x 20m Suction Hose, 2ʺ x 20m Hose

6ʺ x 10m Vacuum Hose,
6ʺ x 10m, 5ʺ x 20m  4ʺ x 20m Suction Hose, 2ʺ x 20m Hose

Medium Duty Range Specification



CBVR 30

CBVR 37

CBVR 45

CBVR 55

CBVR 75

Recovery Rate (Ton/Hour)

2.4

3

4.5

6

8

Electric Motor

30 KW

37 KW

45 KW

55 KW

90 KW

NG (rpm)

3680

3680

3300

2965

3710

NM (rpm)

2945

2945

2955

2965

2970

Q1 (m³/min)

18.2

25.7

33.8

42.7

54.6

t² (°C)

67

67

66

66

65

Max Noise Level

80

85

85

85

90

Electrical Supply

380 Volt – 50 / 60 Hz

Start Stop

With Star – Delta



Features
Specification
Manuals



Standard Safety Features of CLEANBLAST VACUUM MACHINE

  • System automatically shut-off to prevent damage to vacuum producer when suction hose is choked-up with abrasive and electric motor’s current rises above a certain predetermined value.
  • Silo and cyclone are equipped with full-tank sensor to shut-off the vacuum machine when it is full and prevent overloading of abrasive to dust-collector. At the same time, it can also be engineered to activate the warning light and alarm (optional).
  • An emergency ‘STOP’ button, when depressed, will automatically cut-off all electrical supply.

Heavy Duty Range Specification

Model No:

CBVR-E8-90

CBVR-E10-110/132

Recovery Rate

3.5 to 8.0 Ton/Hr

5.0 to 12 Ton/Hr

Max. Conveying Distance

20m in Vertical ;
10m in Horizontal

30m in Vertical ;
20m in Horizontal

Supply / Power / Class

415V 3phase 50Hz/ 90KW
Class F insulation & IP54 Protection

415V 3phase 50Hz/110 KW or 132KW Class F insulation & IP54 Protection

Air Flow

1470 cfm@ -450mm Hg

2400 cfm@ -450mm Hg

Filter Cleaning

Periodic Reverse Jet Air Pulsing c/w Timer Card

Periodic Reverse Jet Air Pulsing c/w Timer Card

Dust Collector Filter

High Efficiency Filter Cartridge

High Efficiency Filter Cartridge

Dimension (LxWxH)

2800 x 2800 x 2250mm

3000 x 2300 x 2560mm

Silo Tank/Gross Weight (included)

8 Ton Silo Tank / 3.5 Ton

8 Ton Silo Tank / 4.5 Ton

Standard Accessories

5ʺ x 10m Vacuum Hose,
5ʺ x 10m, 4ʺ x 20m Suction Hose, 2ʺ x 20m Hose

6ʺ x 10m Vacuum Hose,
6ʺ x 10m, 5ʺ x 20m  4ʺ x 20m Suction Hose, 2ʺ x 20m Hose

Medium Duty Range Specification



CBVR 30

CBVR 37

CBVR 45

CBVR 55

CBVR 75

Recovery Rate (Ton/Hour)

2.4

3

4.5

6

8

Electric Motor

30 KW

37 KW

45 KW

55 KW

90 KW

NG (rpm)

3680

3680

3300

2965

3710

NM (rpm)

2945

2945

2955

2965

2970

Q1 (m³/min)

18.2

25.7

33.8

42.7

54.6

t² (°C)

67

67

66

66

65

Max Noise Level

80

85

85

85

90

Electrical Supply

380 Volt – 50 / 60 Hz

Start Stop

With Star – Delta
