Blast cabinets SPECIAL BLASTING EQUIPMENT

BLAST CABINETS

Introducing CLEANBLAST™ Blast Cabinets, featuring the exceptional Jetair model by Vixen. These cabinets represent the pinnacle of industrial sandblasting technology. With the brilliance of LED lighting and a high-performance dust collection system, these cabinets guarantee maximum internal visibility – a critical element for achieving outstanding results.

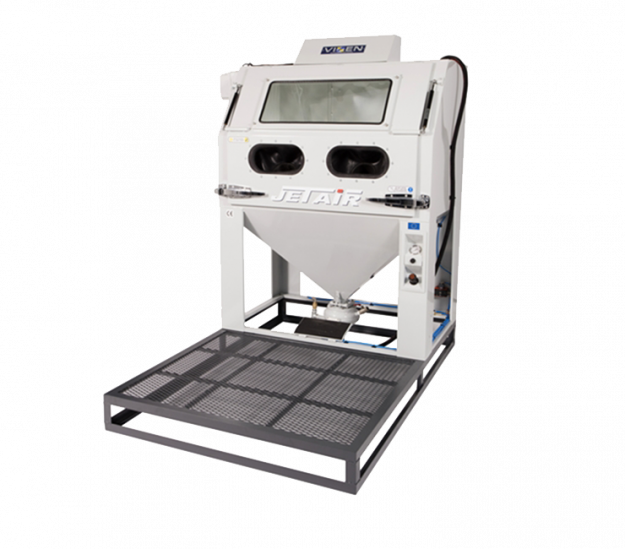

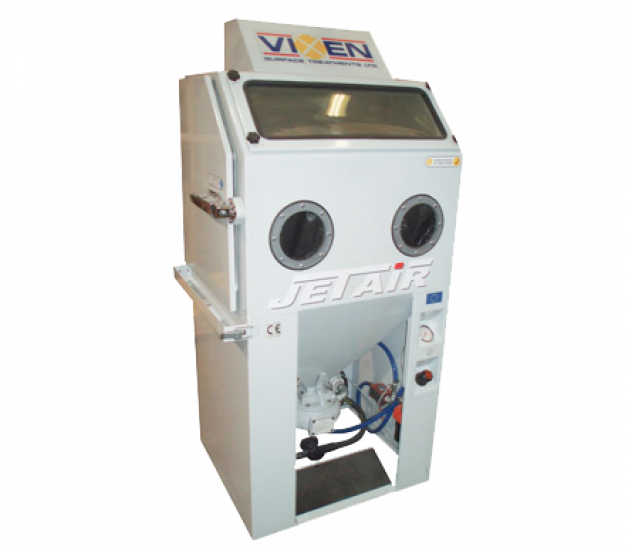

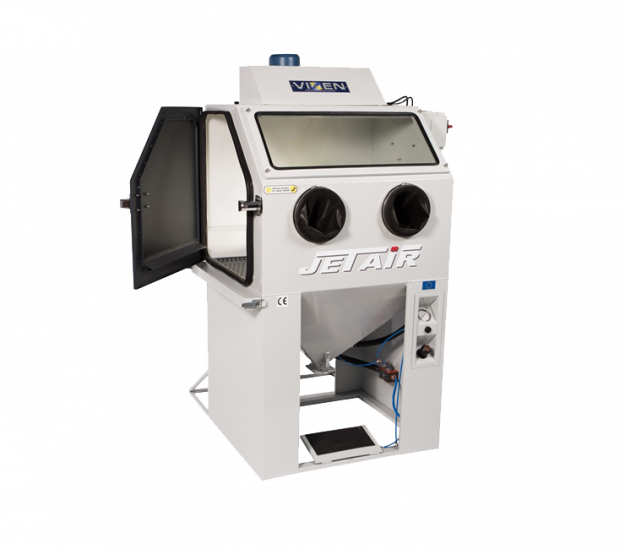

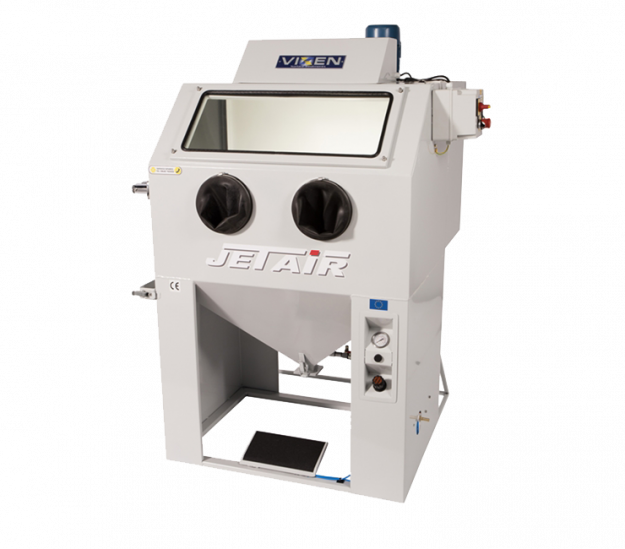

Diversity is key, with four standard sizes to choose from: VM30, VM36, VM42, and the robust VM55. Notably, the VM55 stands out with its gas-assisted full front door, designed for effortless access when dealing with larger components. The convenience of bellow-sealed gauntlets enhances the user experience further.

Highlighted features include halogen lighting for clarity, a user-friendly light and extractor switch, a slam shut door for security, a media catch tray for cleanliness, and sealed armholes for operator safety. The full-width window offers a comprehensive view of the process, while easy pressure conversion streamlines adjustments. For precision cleaning, the handheld air wash gun is a valuable addition.

The integrated dust extraction system ensures a clean working environment, while the sealed hopper sieve, moisture trap, and pressure gauge contribute to efficient operations. Electrostatically powder-coated for durability, these cabinets also boast blast room rubber lining for extended lifespan.

Technical specifications and additional resources like manuals and videos are available. Choose from VM30, VM36, VM42, or VM55, each built to the same high standard with size-specific advantages. Trust CLEANBLAST™ Blast Cabinets for superior quality and performance.

Features:

  • Halogen lighting
  • Light and extractor switch
  • Slam shut door
  • Media catch tray
  • Sealed armhole/gloves
  • Full-width window
  • Easy pressure conversion
  • Handheld air wash gun
  • Extraction air inlet ducts
  • Integral dust extraction as standard
  • Sealed hopper sieve
  • Moisture trap and pressure gauge
  • Electrostatically powder-coated
  • Blast room rubber lined
Specification
Manuals
Video


VM 36

VM 42

VM 55

Blast RoomL  = 920mm W = 920mm L  = 920mm

L  = 1070mm W = 760mm L  = 760mm

L  = 1400mm W = 910mm L  = 910mm

Window785 x 330mm785 x 330mm785 x 330mm
Max object weight50kg70kg500kg
Air connection½” Ferule½” Ferule½” Ferule
Air nozzle3.75mm3.75mm3.75mm
Blast nozzle8.0mm Tungsten8.0mm Tungsten8.0mm Tungsten
Air consumption

3 bar : 395 l/min

4 bar : 490 l/min

5 bar : 580 l/min

6 bar : 700 l/min

7 bar : 880 l/min

3 bar : 395 l/min

4 bar : 490 l/min

5 bar : 580 l/min

6 bar : 700 l/min

7 bar : 880 l/min

3 bar : 395 l/min

4 bar : 490 l/min

5 bar : 580 l/min

6 bar : 700 l/min

7 bar : 880 l/min

Blast controlFull width foot pedalFull width foot pedalFull width foot pedal
Electrics220V, 1ph, 50 Hz220V, 1ph, 50 Hz220V, 1ph, 50 Hz
Lighting

100 Watt halogen

100 Watt halogen

100 Watt halogen

Dust extractionIntegral 3 pocket filter bag unitIntegral 3 pocket filter bag unitIntegral 3 pocket filter bag unit
Standard extras

Separate air gun

Air filter

Pressure reducer

Separate air gun

Air filter

Pressure reducer

Separate air gun

Air filter

Pressure reducer
